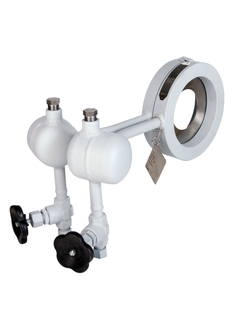

Deltatop DO63C - Differential pressure flow

Deltatop DO63C

DO63C
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Filter Measuring / Application task
Filter Measuring / Application task
Measuring / Application task

Configure to download the CAD drawings of this product

Close Show results

  • Product headline

    Calculated volume or mass flow measurement. dp primary element (orifice).
    Orifice plate with carrier ring and annular chamber corner taps.

  • Sensor features

    Internationally standardized ISO5167-2.
    Divided carrier ring with exchangeable orifice plate.
    Compact or remote design.
    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.
    Deltabar S/M differential pressure transmitter.

  • Nominal diameter range

    DN 50...1000
    2" ... 40"

  • Max. measurement error

    typically < 1% of calculated volume or mass acc. ISO5167 without calibration.

  • Measuring range

    0.4 ... 15'000m3/h

  • Max. process pressure

    PN6 ... 100
    Cl.150 ... 600

  • Medium temperature range

    Compact version:
    -200°C ... 200°C
    -328°F ... 392°F
    Remote version:
    -200°C ... 1000°C
    -328°F ... 1832°F

  • Degree of protection

    Transmitter (Deltabar):
    IP67
    NEMA6P

  • Display/Operation

    Transmitter (Deltabar):
    4-line display
    3 push buttons
    Quick setup
    HistoROM

  • Outputs

    Transmitter (Deltabar):
    4 ... 20 mA

  • Digital communication

    Transmitter (Deltabar):
    HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • Hazardous area approvals

    Transmitter (Deltabar):
    ATEX
    FM
    CSA
    IEC
    TIIS
    NEPSI

  • Product headline

    Calculated volume or mass flow measurement. dp primary element (orifice).
    Orifice plate with carrier ring and annular chamber corner taps.

  • Sensor features

    Internationally standardized ISO5167-2.
    Divided carrier ring with exchangeable orifice plate.
    Compact or remote design.
    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.
    Deltabar S/M differential pressure transmitter.

  • Nominal diameter range

    DN 50...1000
    2" ... 40"

  • Max. measurement error

    typically < 1% of calculated volume or mass acc. ISO5167 without calibration.
    Uncertainty of primary element excluding uncertainty of density or compensation.

  • Measuring range

    10 ... 150'000m3/h

  • Max. process pressure

    PN6 ... 100
    Cl.150 ... 600

  • Medium temperature range

    Compact version:
    -200°C ... 200°C
    -328°F ... 392°F
    Remote version:
    -200°C ... 1000°C
    -328°F ... 1832°F

  • Degree of protection

    Transmitter (Deltabar):
    IP67
    NEMA6P

  • Display/Operation

    Transmitter (Deltabar):
    4-line display
    3 push buttons
    Quick setup
    HistoROM

  • Outputs

    Transmitter (Deltabar):
    4 ... 20 mA

  • Digital communication

    Transmitter (Deltabar):
    HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • Hazardous area approvals

    Transmitter (Deltabar):
    ATEX
    FM
    CSA
    IEC
    TIIS
    NEPSI

  • Product headline

    Calculated volume or mass flow measurement. dp primary element (orifice).
    Orifice plate with carrier ring and annular chamber corner taps.

  • Sensor features

    Internationally standardized ISO5167-2.
    Divided carrier ring with exchangeable orifice plate.
    Compact or remote design.
    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.
    Deltabar S/M differential pressure transmitter.

  • Nominal diameter range

    DN 50...1000
    2" ... 40"

  • Max. measurement error

    typically < 1% of calculated volume or mass acc. ISO5167 without calibration.
    Uncertainty of primary element excluding uncertainty of density or compensation.

  • Measuring range

    10 ... 150'000m3/h
    50 ... 750'000 kg/h at 10bar/230°C

  • Max. process pressure

    PN6 ... 100
    Cl.150 ... 600

  • Medium temperature range

    Compact version:
    -200°C ... 200°C
    -328°F ... 392°F
    Remote version:
    -200°C ... 1000°C
    -328°F ... 1832°F

  • Degree of protection

    Transmitter (Deltabar):
    IP67
    NEMA6P

  • Display/Operation

    Transmitter (Deltabar):
    4-line display
    3 push buttons
    Quick setup
    HistoROM

  • Outputs

    Transmitter (Deltabar):
    4 ... 20 mA

  • Digital communication

    Transmitter (Deltabar):
    HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • Hazardous area approvals

    Transmitter (Deltabar):
    ATEX
    FM
    CSA
    IEC
    TIIS
    NEPSI
